Description
Product Title

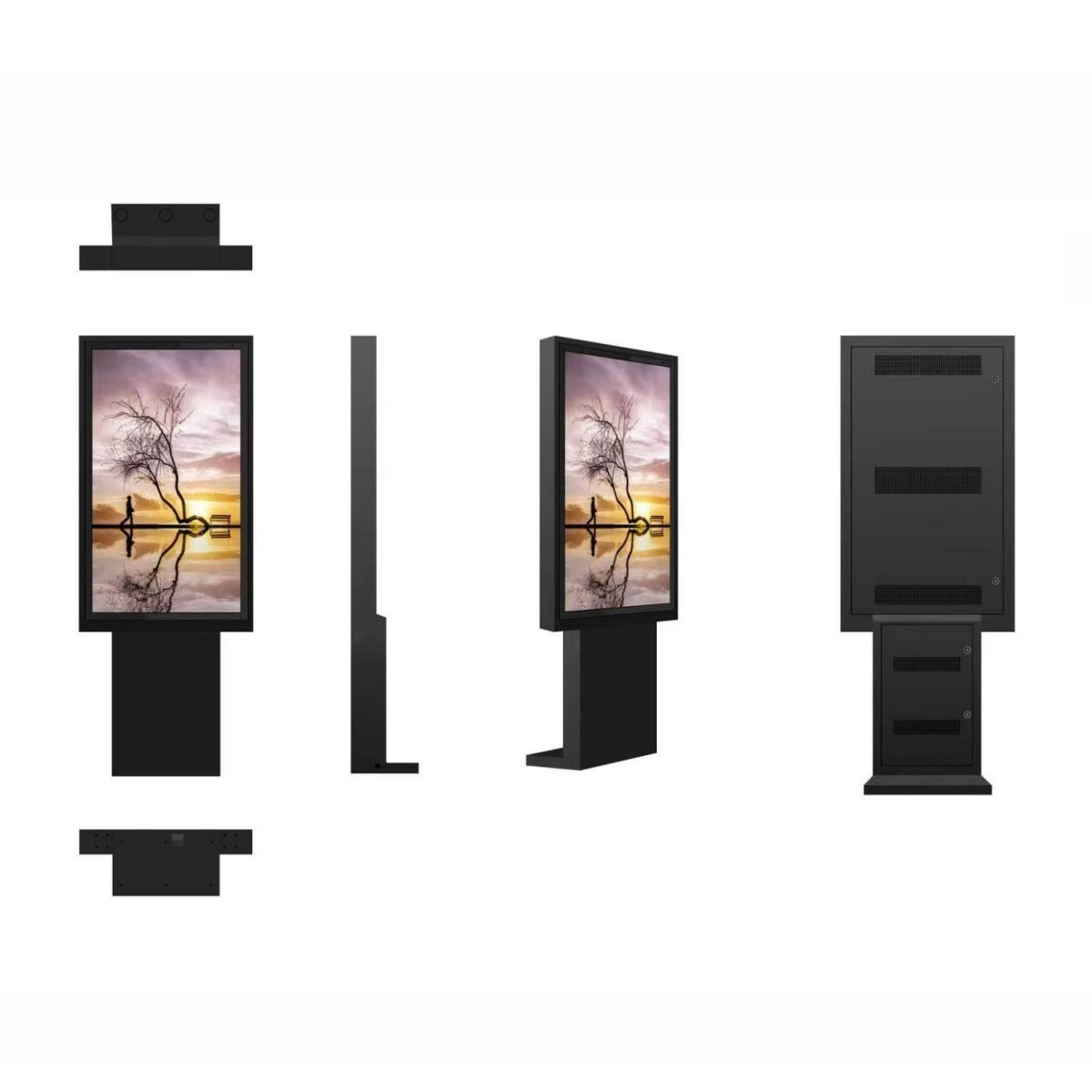

2500-Nit IP66 Outdoor High-Brightness LCD Digital Signage Display | 32–86 Inch | Optical Bonding | Wall-Mount or Floor-Standing | Optional Touchscreen
Five Key Features
- 2500-Nit Sunlight-Readable Display – High-brightness LG or BOE wide-temperature LCD panel provides clear, vivid images for outdoor advertising and information display.
- IP66 Weatherproof Protection – Sealed slim enclosure protects the display against rain, dust and outdoor environmental exposure.
- Full Optical Bonding – The LCD panel and 5 mm ultra-clear tempered glass are fully bonded using German WACKER liquid optical adhesive, reducing internal reflections and improving image clarity.
- Smart and Quiet Temperature Control – Intelligent thermal management maintains stable operation while minimizing fan noise and routine maintenance requirements.
- Flexible Installation Options – Supports portrait or landscape orientation, with optional wall-mounting bracket, portrait floor stand and capacitive touchscreen configurations.
Product Description
This slim IP66 outdoor LCD digital signage display is designed for high-visibility advertising and information presentation in outdoor and semi-outdoor commercial environments.
The display uses an LG or BOE wide-temperature LCD panel with brightness up to 2500 cd/m². A 5 mm ultra-clear tempered-glass front is fully bonded to the LCD panel using German WACKER liquid optical adhesive, improving image clarity while providing additional protection.
The industrial aluminum front frame is finished with outdoor-grade powder coating. Its sealed, slim enclosure incorporates an intelligent, ultra-quiet temperature-control system for reliable operation under changing environmental conditions.
The display can be installed in either portrait or landscape orientation. Wall-mounted versions are available from 32 to 86 inches, while portrait floor-standing versions are available from 43 to 86 inches. Capacitive touchscreen models are available from 32 to 65 inches.
The standard Android configuration includes an HUIDU HD3568V mainboard with 2 GB RAM and 32 GB internal storage.
Available Options
| Screen Size | Non-Touch | Capacitive Touch | Wall-Mount Bracket | Portrait Floor Stand |
|---|---|---|---|---|
| 32 inch | Yes | Yes | Yes | No |
| 43 inch | Yes | Yes | Yes | Yes |
| 49 inch | Yes | Yes | Yes | Yes |
| 55 inch | Yes | Yes | Yes | Yes |
| 65 inch | Yes | Yes | Yes | Yes |
| 75 inch | Yes | No | Yes | Yes |
| 86 inch | Yes | No | Yes | Yes |
Installation orientation: Portrait or landscape
Housing color: Standard black; custom colors may be available subject to MOQ.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Outdoor high-brightness LCD digital signage display |
| Available Sizes | 32", 43", 49", 55", 65", 75" and 86" |
| LCD Panel | LG or BOE wide-temperature panel |
| Brightness | 2500 cd/m² |
| Front Glass | 5 mm ultra-clear tempered glass |
| Bonding Process | Full optical bonding |
| Optical Adhesive | German WACKER liquid optical adhesive |
| Protection Rating | IP66 |
| Mainboard | HUIDU HD3568V |
| Memory | 2 GB RAM |
| Storage | 32 GB |
| Input Voltage | AC 100–240V |
| Frame Material | Industrial aluminum |
| Surface Finish | Outdoor-grade powder coating |
| Temperature Management | Intelligent temperature-control system |
| Installation Orientation | Portrait or landscape |
| Touch Option | Optional capacitive touchscreen, 32–65 inches |
| Mounting Options | Wall-mount bracket or portrait floor stand |
| Enclosure Design | Slim, sealed and low-maintenance |
| Heat-Resistant Materials | Selected materials rated up to 105°C |
| Packing | One unit per export wooden crate |
Note: Overall dimensions, resolution, power consumption and packing specifications vary by screen size and configuration. Please contact us for the corresponding technical drawing.
Installation Options
Wall-Mounted
Available for all screen sizes from 32 to 86 inches. The display can be installed vertically or horizontally, subject to the selected bracket and site structure.

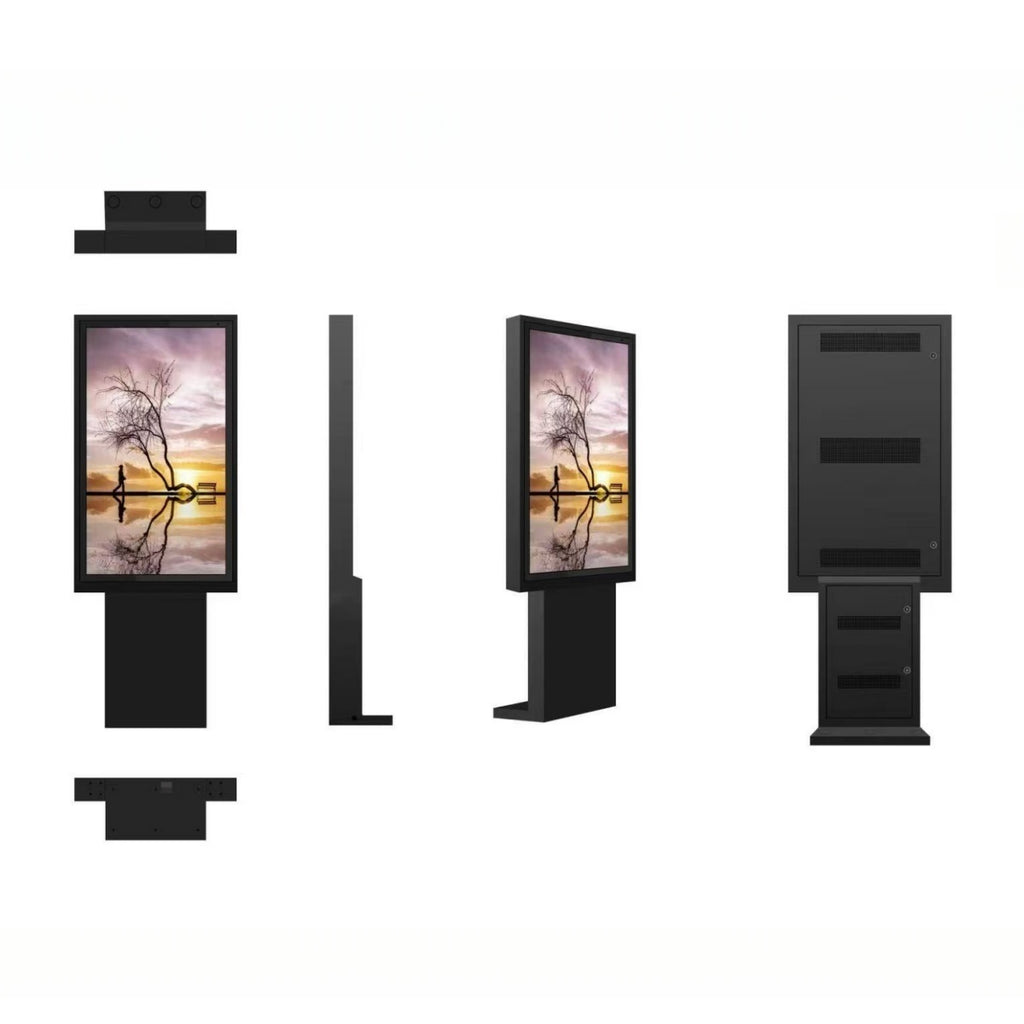

Portrait Floor-Standing
Available for 43, 49, 55, 65, 75 and 86-inch models. The floor stand provides a complete freestanding outdoor signage solution.
Capacitive Touchscreen
Available for 32, 43, 49, 55 and 65-inch models. Suitable for outdoor directories, interactive information terminals and self-service applications.
Typical Applications
- Outdoor retail advertising
- Shopping centers and commercial plazas
- Restaurant menu boards
- Hotel and resort entrances
- Transportation hubs
- Outdoor information kiosks
- Corporate and campus wayfinding
- Tourist attractions
- Public information displays
- Interactive directories and self-service terminals
Production Lead Time
| Material Availability | Estimated Production Time |
|---|---|
| Materials in stock | 10–15 days |
| Materials not in stock | Approximately 25 days |
Estimated Transportation Time
| Shipping Method | Estimated Transit Time |
|---|---|
| Air shipping | 12–18 days |
| Sea shipping | 35–40 days to US, 55-60 days to EU |
Production and transportation times are estimates. Actual timing may vary according to screen size, configuration, order quantity, destination and customs clearance.
Package Includes
- Outdoor LCD digital signage display
- HUIDU HD3568V Android mainboard
- Selected wall-mount bracket or portrait floor stand
- AC power connection
- Export wooden crate
- Configuration documents applicable to the ordered model
Ordering Information
Before ordering, please confirm:
- Required screen size
- Touch or non-touch version
- Wall-mounted or floor-standing installation
- Portrait or landscape orientation
- Installation location and environment
- Delivery address
- Required quantity
Custom structures and configurations can be evaluated according to your project requirements.
