DC12V WS2815 RGBIC LED Strip Light - 10mm PCB | SMD5050 Individually Addressable | Breakpoint Resume | 30 / 60 / 96LEDs/M | White PCB | IP00 / IP65 / IP67 | Flowing Multicolor LED Strip for Party, Decoration, Home DIY Lighting Projects | 5/50M

DC12V WS2815 RGBIC LED Strip Light - 10mm PCB | SMD5050 Individually Addressable | Breakpoint Resume | 30 / 60 / 96LEDs/M | White PCB |  IP00 / IP65 / IP67 | Flowing Multicolor LED Strip for Party, Decoration, Home DIY Lighting Projects | 5/50M

Package Included

Complete Kit Included:

Order & Logistics:

• Lead Time: Ships within 3–7 business days
• Packing: Cardboard box, sealed with anti-static bag
• Shipping:  7-12 days by AIR.

Product Features:

• WS2815 Individually Addressable RGBIC – Each LED can be controlled independently, allowing dynamic chasing, flowing, rainbow, and programmable lighting effects. The WS2815 IC supports Breakpoint Resume, so if one LED fails, the remaining LEDs continue working normally.

• Multiple LED Density Options – Available in 30 LEDs/m, 60 LEDs/m, and 96 LEDs/m, providing different brightness levels and pixel densities to suit decorative lighting, DIY projects, and programmable LED displays.

• 10mm White PCB with SMD5050 LEDs – Built with high-quality SMD5050 RGB LEDs on a durable 10mm white PCB, ensuring stable performance, flexible installation, and consistent multicolor lighting output.

• Multiple Waterproof Versions – Choose from Non-Waterproof (IP00), IP65 Waterproof (silicone coated), or IP67 Waterproof (silicone tube) to suit indoor decorative lighting or outdoor installation environments.

• Flexible Package Options – Available as 16.5FT (5M × 1 Roll), 165FT (5M × 10 Rolls), or a Complete Kit (1 × 5M Strip + Controller + Power Supply), ideal for DIY lighting, party decoration, home ambience lighting, and creative lighting projects.

Product Specification:

1. LED Strip Specifications

LED Type: SMD5050 RGBIC

IC Driver: WS2815 Individually Addressable

Input Voltage: DC12V

LED Density: 30 LEDs/m, 60 LEDs/m, 96 LEDs/m

PCB Width: 10 mm

PCB Color: White

Waterproof Options: IP00 (Non-Waterproof), IP65 Waterproof, IP67 Waterproof

Beam Angle: 120°

Luminous Flux: 18–22 lm per LED

Color Rendering Index: 80

Control Type: Individually Addressable RGBIC

Feature: Breakpoint Resume (Breakpoint Continuous Transmission)

Length per Roll: 5 m (16.5 ft)

Lifetime: 30000 hours

Product Weight: 150 g

Working Temperature: -20°C to 60°C

Storage Temperature: -30°C to 80°C

2. Controller (Included in Complete Kit Only)

Model: SP648E

Control Method: App Control + 2.4G Remote Control

Supported IC: WS2815 and other SPI addressable RGB LED driver ICs

Max Supported LEDs: Up to 600 LEDs

Features: Music sync, dynamic effects, DIY effects, timer function, OTA firmware upgrade

Model: SP648E

Features:
SPI three-channel addressable RGB LED controller, with unique dynamic, music
and DIY effects to meet your lighting and ambiance needs.
1. Support App control and2.4G remote control;
2. Support up to 600 single-wire RZ RGB LED driver ICs;
3. Built-in a variety of music and dynamic effects, support effects pause,
multi-parameter adjustable;
4. Capture music through the phone microphone, player streamer and on-board
microphone;
5. Support effect collection;
6. support DIY effects;
7. With a variety of ON/OFF animation effects;
8. With sequential channel calibration and ON/OFF timer functions;
9. Support OTA firmware upgrade.

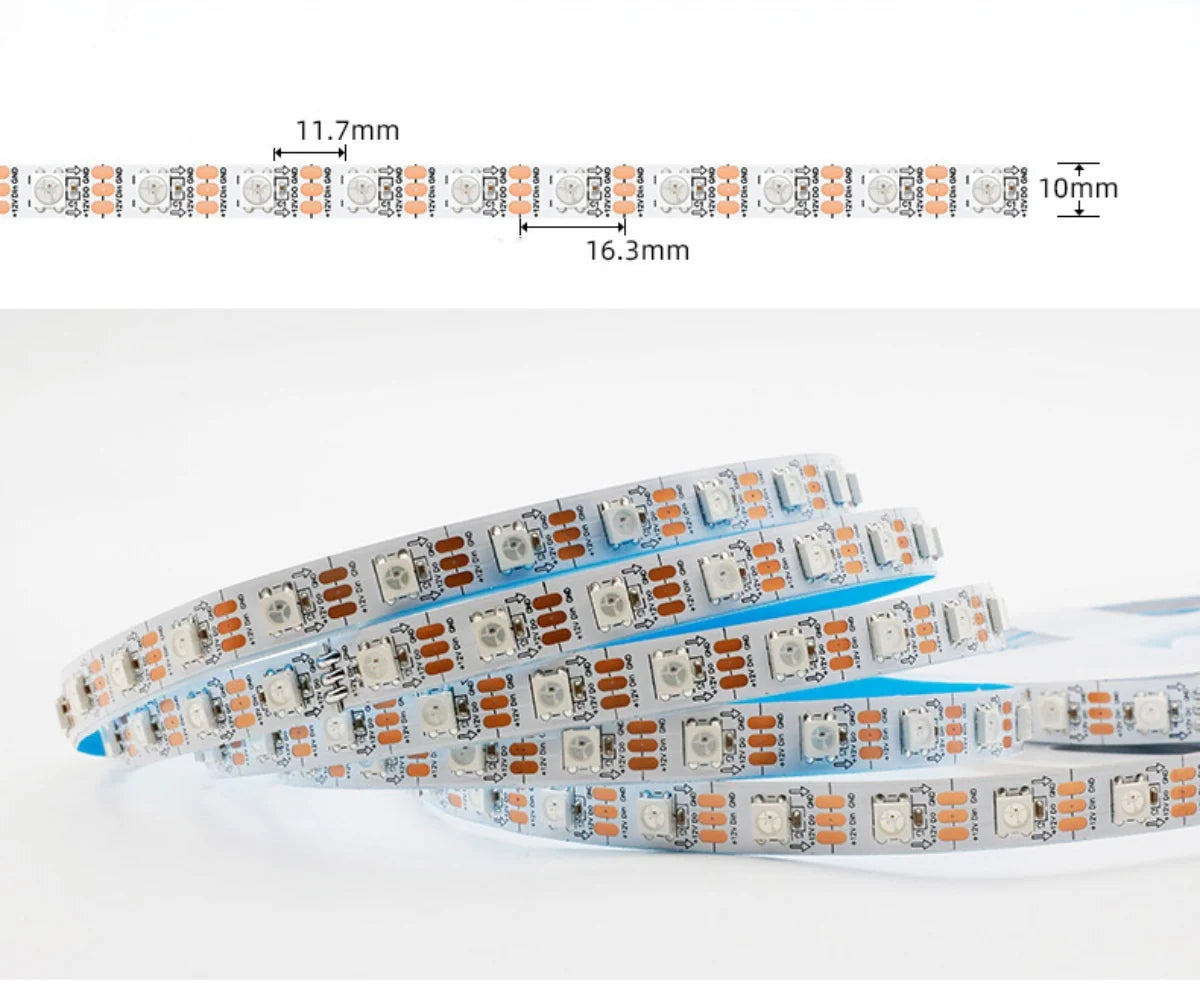

Strip Details

Wiring Diagram:

General Information:
